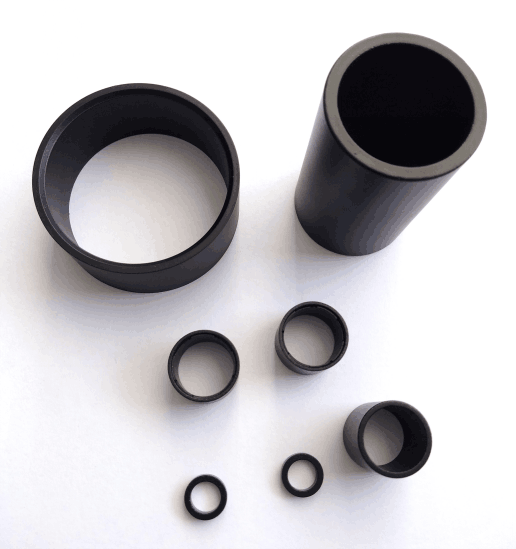

Injection Molded Bonded Neodymium Magnets Epoxy Coated

Injection Molded Epoxy Coated Bonded Neodymium Magnets

About Compression Bonded Magnets

Compression bonded magnets are isotropic and have the advantage to more advanced shapes compared to sintered magnets. Due to lower density and that they are Isotropic the magnetic properties are lower in comparison with sintered NdFeb. The magnet needs to be quoted with a layer of black or grey epoxy coating,parylene coating to protect them against corrosion.

Advantages Of Compression Bonded Magnets

1: Higher magnetic strength than injection molded magnet.

2: High corrosion resistance (Epoxy coating, parylene coating) and temperature resistance, the salt spray teasting >72 hours

3: Magnetizing with complex patterns (Multi-poles on OD, ID, end face (axial), radial, helical magnetization......)

4: Higher magnetic property (Br: 3500-8000G, BHmax: 3-12MGOe, Hcj: 4000-17000 Oe

5: Complicated shape

COMPRESSION MOLDED BONDED NEODYMIUM GRADES
Grade	Residual Induction	Coercive Force	Intrinsic Coercive Force	Maximum Energy Product	Density D	Reversible Permeability	Reversible Temp Coefficient A	Max Operating Temp
	Br T(KG)	bHc KA/m (KOe)	iHc KA/m (KOe)	(BH)max KJ/m^3 (MGOe)	g/cm^3		Br%/°C
BNP-2	300-400	160-240	440-600	19-26	5.6-6.0	1.2	-0.11	160
	(3.0-4.0)	(2.0-3.0)	(5.5-7.5)	(2.4-3.3)
BNP-3	400-510	216-280	504-680	24-32	5.6-6.0	1.2	-0.11	160
	(4.0-5.1)	(2.7-3.5)	(6.3-8.5)	(5.6-6.0)
BNP-4	460-520	224-288	504-680	30-35	5.6-6.0	1.2	-0.11	160
	(4.6-5.2)	(2.8-3.6)	(6.3-8.5)	(3.8-4.4)
BNP-5	470-550	240-360	520-680	37-44	5.6-6.0	1.2	-0.11	160
	(4.7-5.5)	(3.0-4.5)	(6.5-8.5)	(4.7-5.5)
BNP-6	550-650	320 - 376 (4.0 - 4.7)	600-720	44-52	5.6-6.0	1.2	-0.11	160
	(5.5-6.5)		(7.5-9.0)	(5.5-6.5)
BNP-7	550-650	320-408	560-680	52-64	5.6-6.0	1.2	-0.11	160
	(5.5-6.5)	(4.0-5.1)	(7.0-8.5)	(6.5-8.0)
BNP-8	620-670	400-456	640-800	64-76	5.8-6.2	1.2	-0.11	160
	(6.2-6.7)	(5.0-5.7)	(8.0-10.0)	(8.0-9.5)
BNP-8A	620-680	400-480	1040-1280	65-73	5.8-6.1	1.2	-0.1	180
	(6.2-6.8)	(5.0-6.0)	(13.0-16.0)	(8.2-9.2)
BNP-9L	670-730	360-416	520-640	68-75	5.8-6.1	1.2	-0.11	120
	(6.7-7.3)	(4.5-5.2)	(6.5-8.0)	(8.6-9.4)
BNP-9	650-700	416-456	680-800	68-76	5.8-6.2	1.2	-0.12	160
	(6.5-7.0)	(5.2-5.7)	(8.5-10.0)	(8.5-9.5)
BNP-9H	650-700	432-488	920-1040	71-80	5.8-6.1	1.2	-0.1	180
	(6.5-7.0)	(5.4-6.1)	(11.5-13.0)	(8.9-10.0)
BNP-10H	650-710	432-480	764-960	74-82	5.8-6.1	1.2	-0.1	180
	(6.5-7.1)	(5.4-6.0)	(9.8-12.0)	(9.3-10.3)
BNP-10	670-720	424-480	640-800	76-84	5.8-6.2	1.2	-0.1	160
	(6.7-7.2)	(5.3-6.0)	(8-10)	(9.5-10.5)
BNP-11	680-740	400-480	640-800	80-88	6.0-6.2	1.2	-0.1	160
	(6.8-7.4)	(5.0-6.0)	(8-10)	(10-11)
BNP-12D	720-770	440-520	720-880	88-96	6.1-6.3	1.2	-0.1	160
	(7.2-7.7)	(5.5-6.5)	(9.0-11.0)	(11.0-12.0)
BNP-12L	730-770	368-432	520-640	80-88	6.0-6.3	1.2	-0.12	120
	(7.3-7.7)	(4.6-5.4)	(6.5-8.0)	(10.0-11.0)
BNP-13L	780-830	400-480	480-640	88-104	6.1-6.4	1.2	-0.12	120
	(7.8-8.3)	(5.0-6.0)	(6.0-8.0)	(11.0-13.0)



INJECTION MOLDED BONDED NEODYMIUM GRADES
Grade	Residual Induction	Coercive Force	Intrinsic Coercive Force	Maximum Energy Product	Density D	Reversible Permeability	Reversible Temp Coefficient A	Max Operating Temp
	Br T(KG)	bHc KA/m (KOe)	iHc KA/m (KOe)	(BH)max KJ/m^3 (MGOe)	g/cm^3		Br%/°C
BNI-3	350-450	200-280	400-640	20-28	4.5-5.0	1.2	-0.11	120
	(3.5-4.5)	(2.5-3.5)	(5.0-8.0)	(2.5-3.5)
BNI-4	400-500	240-320	560-720	28-36	4.5-5.0	1.2	-0.11	120
	(4.0-5.0)	(3.0-4.0)	(7.0-9.0)	(3.5-4.5)
BNI-5	450-550	304-360	640-800	36-44	4.5-5.1	1.2	-0.11	120
	(4.5-5.5)	(3.8-4.5)	(8.0-10.0)	(4.5-5.5)
BNI-5SR	450-550	320-400	880-1120	36-44	4.8-5.3	1.2	-0.11	180
	(4.5-5.5)	(4.0-5.0)	(11.0-14.0)	(4.8-5.5)
BNI-6	500-600	328-384	640-800	44-52	4.7-5.2	1.2	-0.11	120
	(5.0-6.0)	(4.1-4.8)	(8.0-10.0)	(5.5-6.5)
BNI-6SR	500-600	320-400	880-1120	44-52	4.9-5.4	1.2	-0.11	180
	(5.0-6.0)	(4.0-5.0)	(11.0-14.0)	(5.5-6.5)
BNI-7	550-650	344-400	640-800	52-60	4.7-5.3	1.2	-0.12	120
	(5.5-6.5)	(4.3-5.0)	(8.0-10.0)	(6.5-7.5)
