Description:
Alnico pot magnets with bridge: Two Through Holes
This alnico pot magmnet with bridge is provided with two simple
fixing holes. Their purpose is to enable fixing to guides,
transport lines, etc.
Format:
On request, can be supplied in any other dimension. Consult with
business.
Maximum working temperature:350ºC
For maximum working temperature contact our sales department.
Standard sizes:

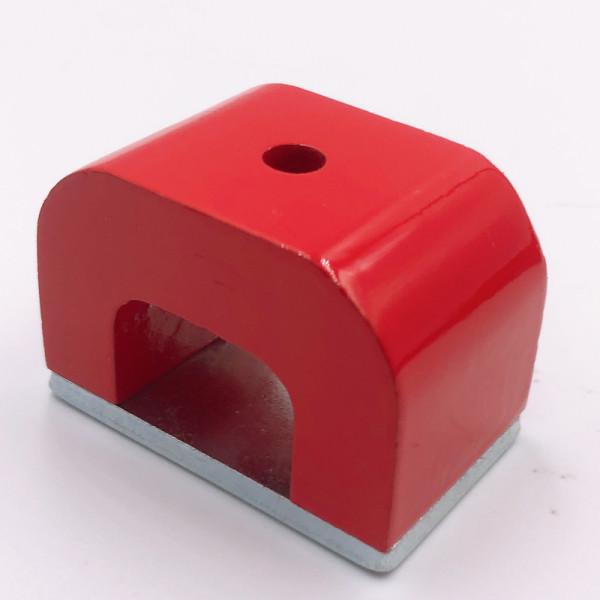

| Permanent Strong AlNiCo Horseshoe Magnet U Shaped Cast Magnet |
| Shape | U Shaped |
| Size | Custom sizes |
| Grade | Alnico2/3/4/5 |
| Working Temperature | The Max Working Temp can reach 350 degrees |
| MOQ | 100pcs |
| Lead time | 35 days |
Features:
An ideal material in high temperature applications, which has high
operating temperature up to 550°C and above, with excellent
corrosion resistance. They can become partially demagnetized if
they come in contact with other ferrous materials, special care is
required during handling and storing.
Usually cast and grinded during production, they are available in
various grades depending on its application. Others such as
sintered Alnico have lower magnetic properties but offer higher
mechanical characteristics.

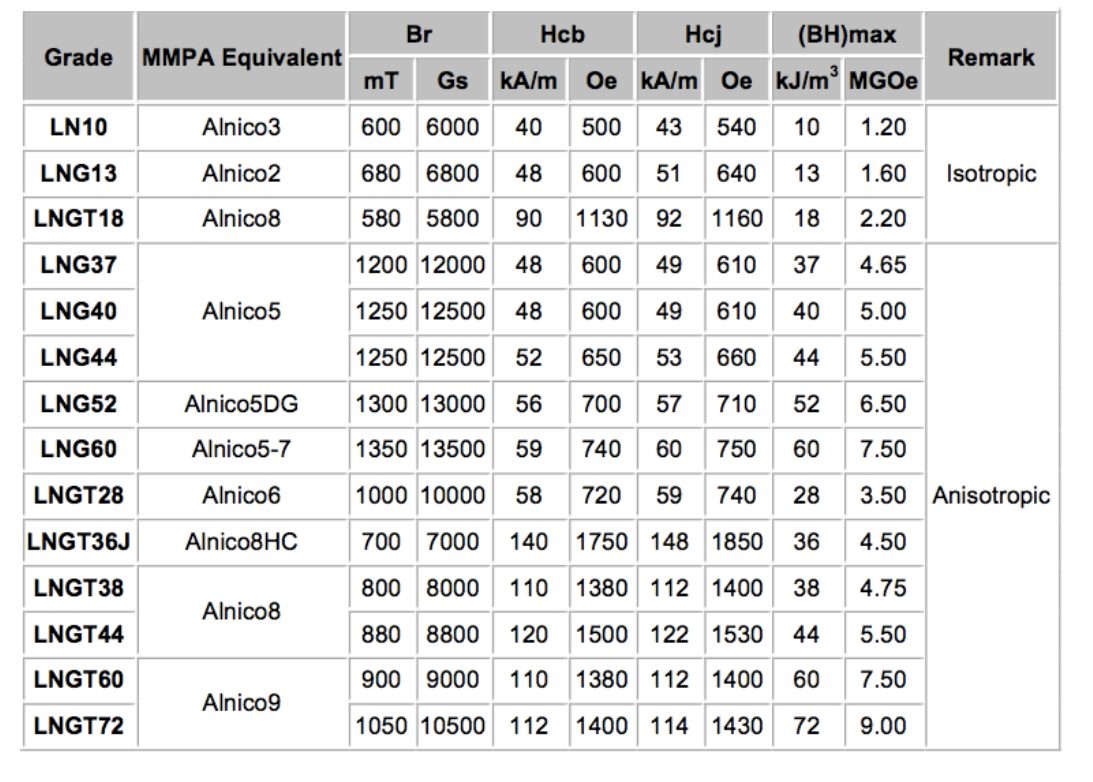

Grade List:
Product Show:
Packing:
As the magnets have strong attraction and we will use the spacer to
apart the magnets each other in case people will be hurt when take
it out. Then, they will be packed in a white box of pieces each,
several boxes to a carton.
+By Air: If the goods will be shipped by air, all the magnetic
should be degaussed and we will use Iron sheet to shield.
+By Sea: If the goods are will be shipped by sea, we will place a
pallet on the bottom of cartons.
Shipping:
Express (TNT, DHL, FedEx, UPS, etc), Air, Ocean.
A: The weight is under 40Kgs, we recommend to send them in
shielding boxes to you by Express.
B: The weight is between 40Kgs-100Kgs, it can be sent by Express or
Air.
C: The weight is over 100Kgs, we recommend to send them by Ocean.
If you need it, please kindly advise me the following details:
A Grade
B Size
C Coating
D Magnetization Direction
E Quantity
Then I will provide the most competitive price for you.
Thanks for your cooperation.
