Strong Neodymium Cup Magnet With Different Color
Strong round base Neodymium pot magnet with countersink hole for
holding application
Round based neodymium pot magnet
Pot magnets, also called Cup Magnets, holding magnet, round base
magnet, mounting magnet, flat pot magnet, etc. The pot magnet
consists of a cylindrical or ring NdFeB (Neodymium-iron-boron)
magnet assembled with a concentric non magnetic ring into a steel
pot. The magnet is magnetized together with the pot to create a
holding force that is significantly stronger than an individual
magnet, because this pot structure directs and concentrates the
flux from both magnetic poles to one active face.
The pot magnet will retain its magnet force permanently unless
working temperature or external magnetic field increases. The size,
shape and magnet material of the pot magnet can adjust to its usage
requirements including pull strength, working temperature, etc.
The pot magnet is versatile so that it is appropriate for various
industrial applications. The typical applications are fixture
positioning, sign and banner holders, emergency light holders, tool
bases, etc.
When considering your selection, please be aware of the following
factors: The stated force (holding/gripping) is based on the pot
magnet retaining force against a direct pull when offered to a
clean ground mild steel surface with a minimum thickness of 6mm.
The smallest gap, even paint or un-ground surface will reduce the
holding force significantly. On a vertical surface the holding
force is reduced by approximately 70%.
Composition: Magnet + Steel pot + Plastic sheet or Epoxy glue
Magnet Grade: N35, you can choose the grade according to the
magnet's work temp. and pull force requirement.
| Material: | Neodymium magnet + steel pot +plastic sheet or epoxy glue |
| Magnet grade | N35, other grade can be customized. |
| Size: | Diameter: 16-120mm |
| Serieces | YYA, YYB, YYC, YYD, YYE, YYF etc. |
| Coating: | Zn, Ni, Epoxy, Colorful Epoxy |
| Pull force: | 2.5-480kg |
| Tolerance: | +/-0.2mm |
| Application: | Holding |
Coating: Zn, Ni, NiCuNi, Epoxy, Chrome coating.
Shape:
We also can supply pot magnet with different color as below
picture:

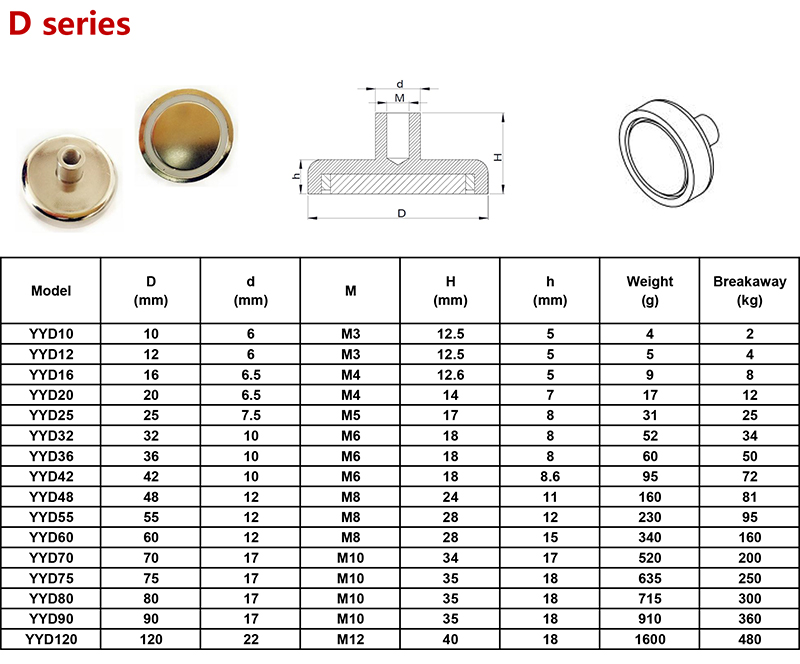

Product list for pot magnet:
Notice
1. Be careful fragile and clip hand.
2. Placed in a dry place, stored at room temperature!
3. Careful draw them, close each other slowly and gently when
connecting two magnets. Hard crushing cause magnet damage and
cracks.
4. Not allowed Children play with naked neodymium magnet.
