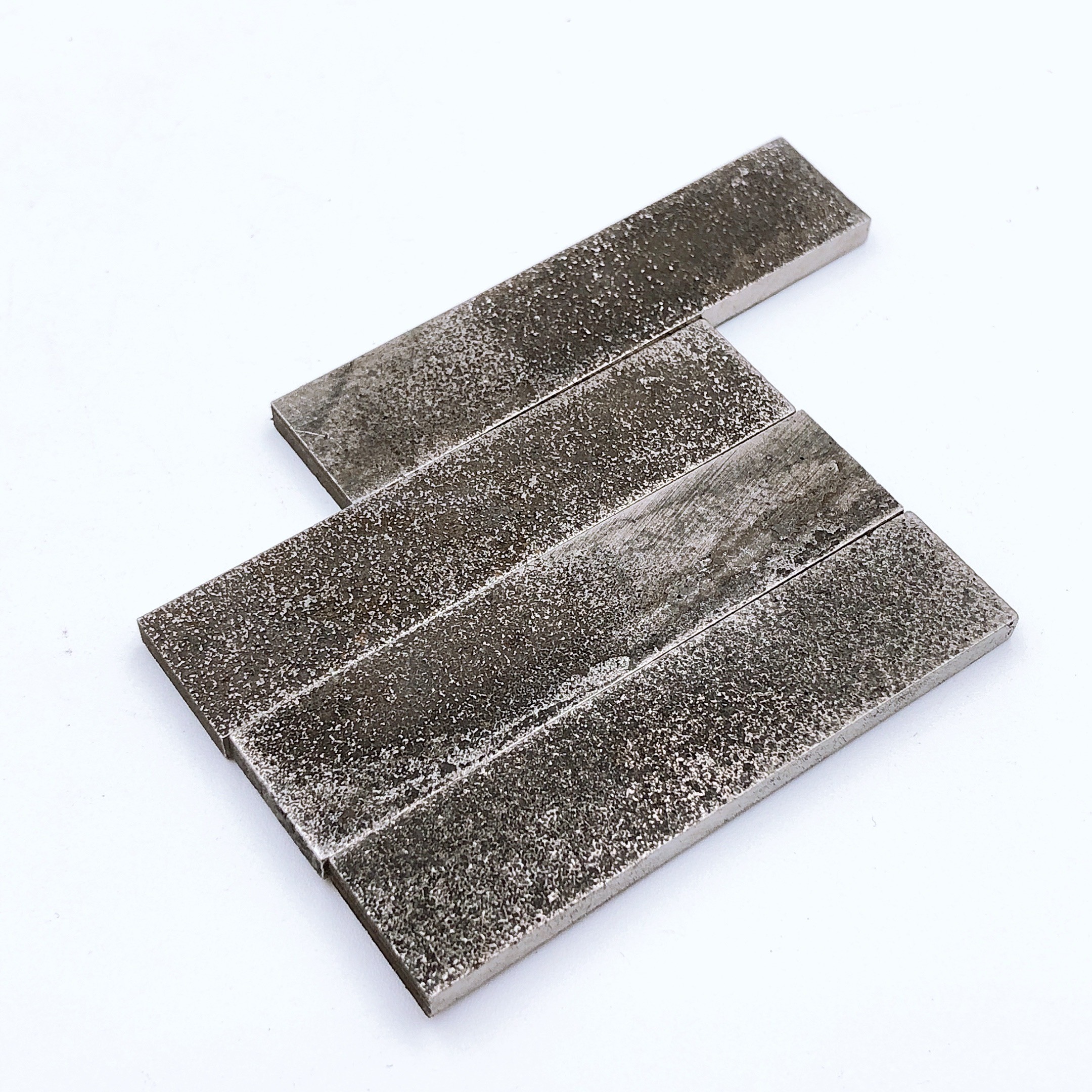

Bar shape magnet for pickups.
Most popular size is 2.5x0.5x0.125"
Magnetic direction: 0.5"
Grade: Alnico 2 3 4 5 8
Surface: Polished or Rough
One of our favorite application is magnets for pickups.There are
many things to consider if you are looking to optimize your guitar
to its full potential, and pickups are arguably one of the most
important elements of customization. If you are a skilled designer
of pickups looking to create the best sound from your instrument,
you have a choice between alnico and ceramic magnets when it comes
to magnetic guitar pickups.Shapes: Bar and Rod.
Magnet grade: Alnico 2, 3,4, 5,8
Alnico 2 traces back to days of the 1950 telecasters, this class
seems to work well for middle-position pickups. It is known by its
sweet, vintage tone, and there seem to be little disadvantages to
using it.
Alnico 3 is the weakest of the three grades. It contains less
cobalt, a core ingredient in the rest of the Alnico family. Because
of the decrease in magnetic pull, it works wonders for neck
pickups, where there is the most string vibration.
Alnico 5 is the strongest of the three alnico grades. The tone and
response of the magnet is more powerful than its two cousins. This
makes it perfect for bridge pickups. Where there is the least
vibration. If you want an aggressive, in-your-face kind of sound,
Alnico 5 is your best bet.
One of our favorite applications is magnets for pickups. There are
two material: Alnico magnet and Ceramic magnet. Alnico magnet is
more strong and durable than ceramic magnet.
The grade we can supply are follows:
Alnico: 2,3,4,5,8
Ceramic: 5,8
Magnetic properties
| Grade | Br(KGs) | Hcb(Oe) | Bhmax (MGOe) | Density(g/cm3) |
| Alnico2 | 7.0 | 600 | 1.6 | 7.2 |
| Alnico3 | 6.5 | 500 | 1.2 | 6.9 |
| Alnico4 | 8.0 | 600 | 4.0 | 7.3 |
| Alnico5 | 12.0 | 600 | 5.0 | 7.3 |
| Alnico8 | 8.0 | 1380 | 4.75 | 7.3 |
| C5 | 3.8 | 2600 | 3.4 | 4.8 |
| C8 | 3.9 | 2900 | 3.5 | 4.8 |
Common sizes as belows, you can choose according to your pickups.
| Material | Grades | Shape | OD | Length | Width | Thickness |
| Alnico | 2,3,4,5 | Rod | 0.187 | 0.625 | | |
| Alnico | 2,3,4,5 | Rod | 0.187 | 0.656 | | |
| Alnico | 2,3,4,5 | Rod | 0.187 | 0.688 | | |
| Alnico | 2,3,4,5 | Rod | 0.187 | 0.719 | | |
| Alnico | 2,3,4,5 | Rod | 0.187 | 0.781 | | |
| Alnico | 2,3,4,5 | Rod | 0.195 | ask | | |
| Alnico | 2,3,4,5 | Block | | 2.125 | 0.500 | 0.125 |
| Alnico | 2,3,4,5 | Block | | 2.250 | 0.500 | 0.125 |
| Alnico | 2,3,4,5,8 | Block | | 2.500 | 0.500 | 0.125 |
| Ceramic | 5,8 | Block | | 3.500 | 0.500 | 0.125 |
Other sizes are available, please contact us to talk details. All sizes are inch. |

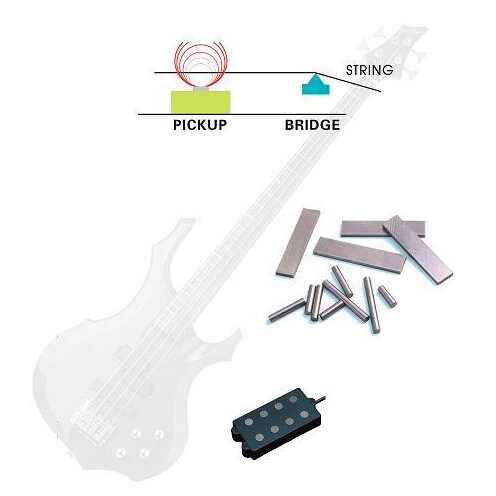

Application:
