Rubber coated pot neodymium magnets working in light fixture

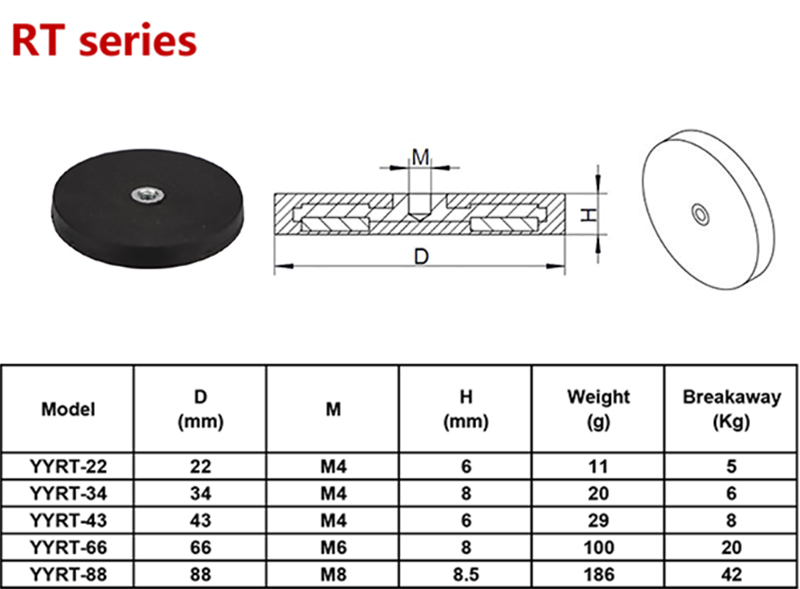

This type of rubber coated magnet is produced with a solid thread
M4/M5/M6 thus making the mounting of the magnets very easy. The
rubber coated magnets are ideal for varnished surfaces due to the
flexibility of the rubber that prevents marks and scratches. The
rubber coated magnets are also perfect for mounting on smooth
surfaces thanks to the anti-gliss effect of the santoprene rubber.
Production list:
| Material | Steel plate with Magnet with rubber coated |
| Color | Black color, other color can be customized also. |
| Common size | 22mm, 43mm, 66mm, 88mm, other size can be customized also. |
| Tolerance | +/-0.2mm |
| Logo | Logo can be print if you need. |
Other information:
Rubber coated magnets with internal thread from MPCO are produced
of quality materials only, to ensure long durability and correct
magnetic strength. To develop quality rubber magnets, the right set
of manufacturing processes and materials are needed for the magnets
to be used within the industrial area. Therefore, these Protego
rubber coated magnets are very special products. Our rubber coated
magnets are part of our Protego quality series that provide
certainty regarding strength and durability of the magnets.
Types of Rubber Coated Magnet
The rubber coated magnets mainly includes:
1. Threaded stem type rubber-coated magnet.
2. Screw socket type rubber-coated magnet.
3. Internal thread type rubber-coated magnet.
4. Countersunk hole type rubber-coated magnet.
Advantages of Rubber Coated Magnet
1. The rubber coated magnet can be applied in different temperature
and pull force with diverse type of magnet.
2. The particular designs of magnetic circuit will ensure
rubber-coated magnet has much higher pull force.
3. The rubber coating is not only protecting rubber-coated magnet
against corrosion, but also keeps the working surface free of
damage.
4. The rubber coating would give extremely fine sheer force to
rubber-coated magnet.
5. The rubber-coated magnet accommodates a series of standard
fasteners and attachments.
HOW TO USE
Rubber coating of pot magnets is considered useful when using
sensitive surfaces like glass and plastics, or highly finished
vehicular surfaces. Rubber coating is also useful to prevent
corrosion in marine, aquatic or external environments, as well as
in
areas where metal strike presents a risk to the magnet. Metal
strike situations are more likely in mechanical environments
related
to motors and machinery.
Rubber coated pot magnets are often placed to create a fixing or
hanging point. The rubber coating provides for superior slide
resistance due to greater friction between the rubber and steel
surface to which the magnet is bonded. Manufacturers and
industrial designers use rubber coated pot magnets for holding and
fastening.
Products and devices held together with rubber coated pots allow
you to easily uncouple the magnet at pre-determined pressure
points for regular cleaning or servicing.
This characteristic increases the durability and ease of use. Used
as connective tissue in plastic clad fabrications, rubber
coated pot magnets do not typically puncture or penetrate plastic
material, helping to maintain the monolithic nature and
integrity of these fast evolving resinous forms.
