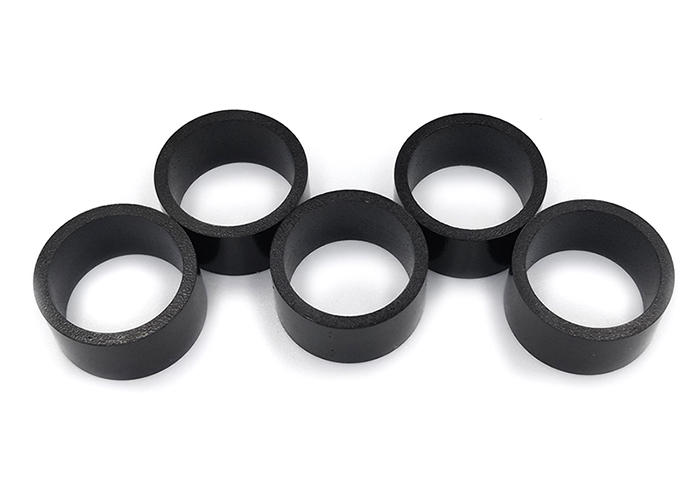

Multipole magnetized epoxy coating bonded ring magnet for motors

Bonded magnet materials can be created through Injection Molded and can be made from NdFeB, Strontium Ferrite or a combination of the two. Bonded magnets that are created through injection molding can be molded into complex shapes and also molded directly onto components. Bonded magnets can also be created through the process of compression bonding which offer higher magnetic output but are limited to simpler geometries than Injection Molded materials. Compression Bonded magnets can be made from either NdFeB or SmCo powders.

Injection Molded:

• Binder Types / Nylon / PPS / Polyamide.
• Temperature Range -40c – 180c
• Very Tight tolerances off tool ( 0.002 -0.003 Typical )
• Very good mechanical strength

Compression Bonded:

• Higher Magnetic Strength due to higher magnetic particle density.
• Epoxy Binder / Resistant to normal industrial solvents and automotive fluids
• Epoxy Coat after manufacturing to prevent oxidation
• Temperature Range -40c – 165c
• “Tight” tolerances off tool
• Good mechanical strength

Typical Bonded Magnet Applications:

• Sensors
• Brushless DC Motors

General Bonded Magnet Applications:

• Materials are isotropic and can be magnetized in any direction
• Wide range of existing tool sizes are available in rings, discs and rectangles
• Exsisting Multipole magnetizing fixtures for quick prototyping
• Easily machined
• Existing Multipole rings simplify assembly verse arc sepments
• The grade as belows:
• More pictures

Company Profile

Hangzhou YangYi Magnetics Co., Ltd. was established in 2007, located in Xiaoshan Economic and Technological Development Zone, is a professional supplier of permanent magnets and related magnetic assemblies in china. Our company insists on the concept of people-oriented, market-oriented, quality-oriented and service-oriented; our goal is to grow with our staffs and develop with our customers together.

What we do?

Our company is specialized in production, sales and service of permanent magnets, our products include Neodymium, SmCo, Alnico, Ferrite/Ceramic, FeCrCo, mini/micro magnets, rubber magnets and related magnetic assemblies, widely used in motors, sensors, meters, electronic instruments, medical devices, automobiles, aviation, aerospace and other applications. Our company is well-known in domestic and overseas market for our strict quality control, reasonable price and good service.

Our Advantages

Product Advantage: High quality magnets with standard properties, good appearance and packing.

Team Advantage: Technical team with rich experience in magnet industry, we can provide reliable suggestions to customers.

Service Advantage: English service team with rich experience in export, we can provide timely service to customers.
